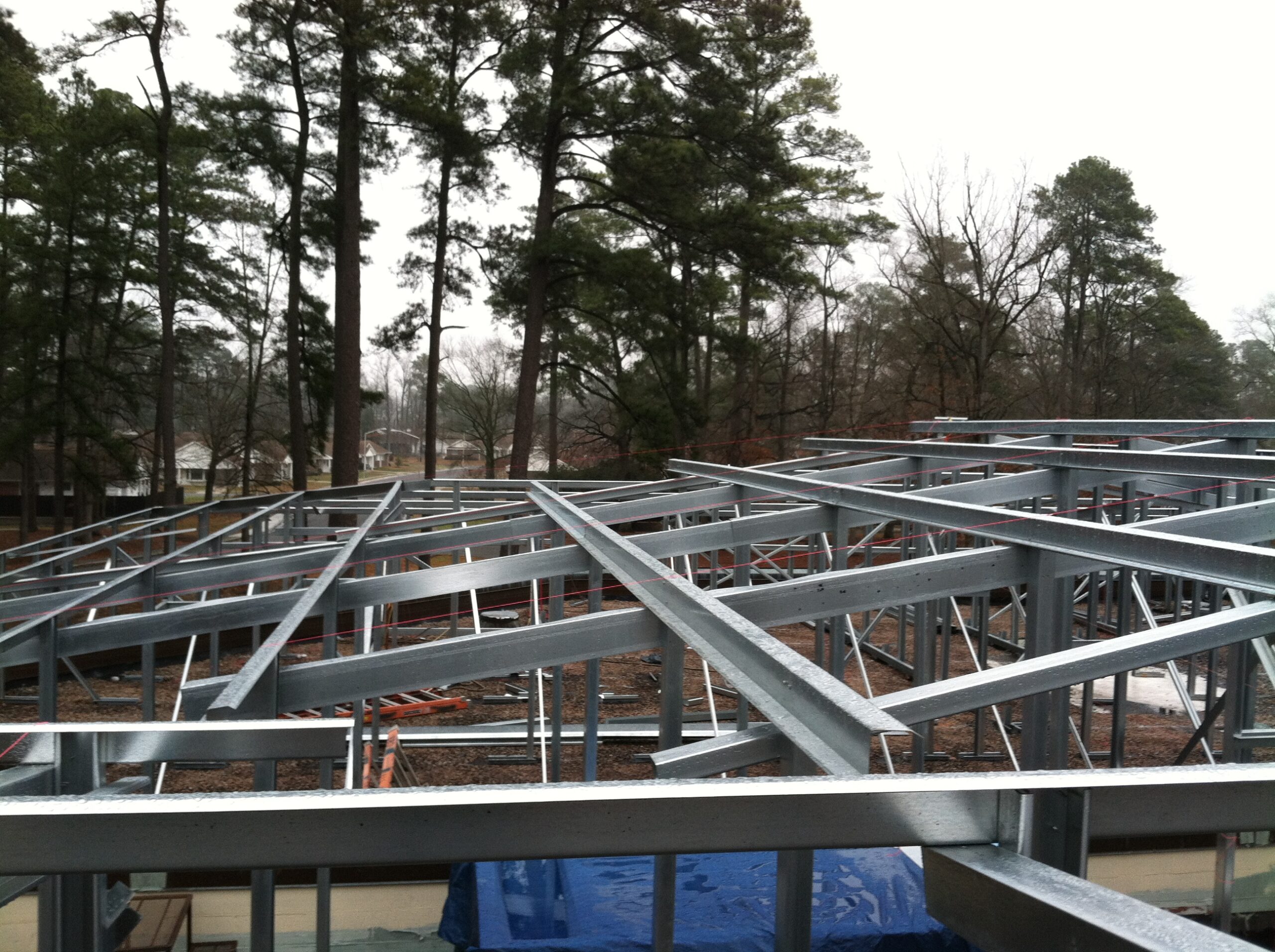

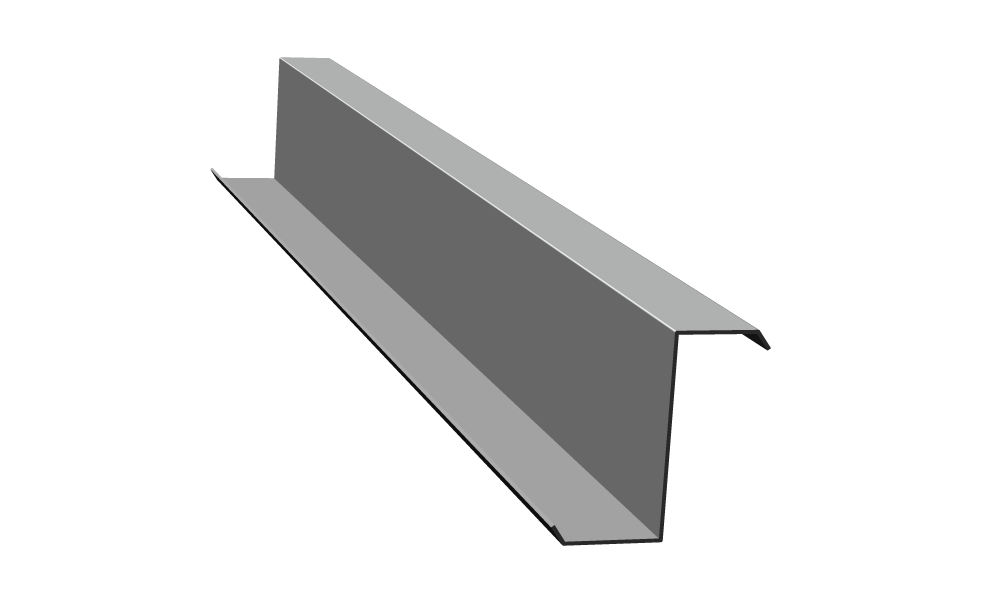

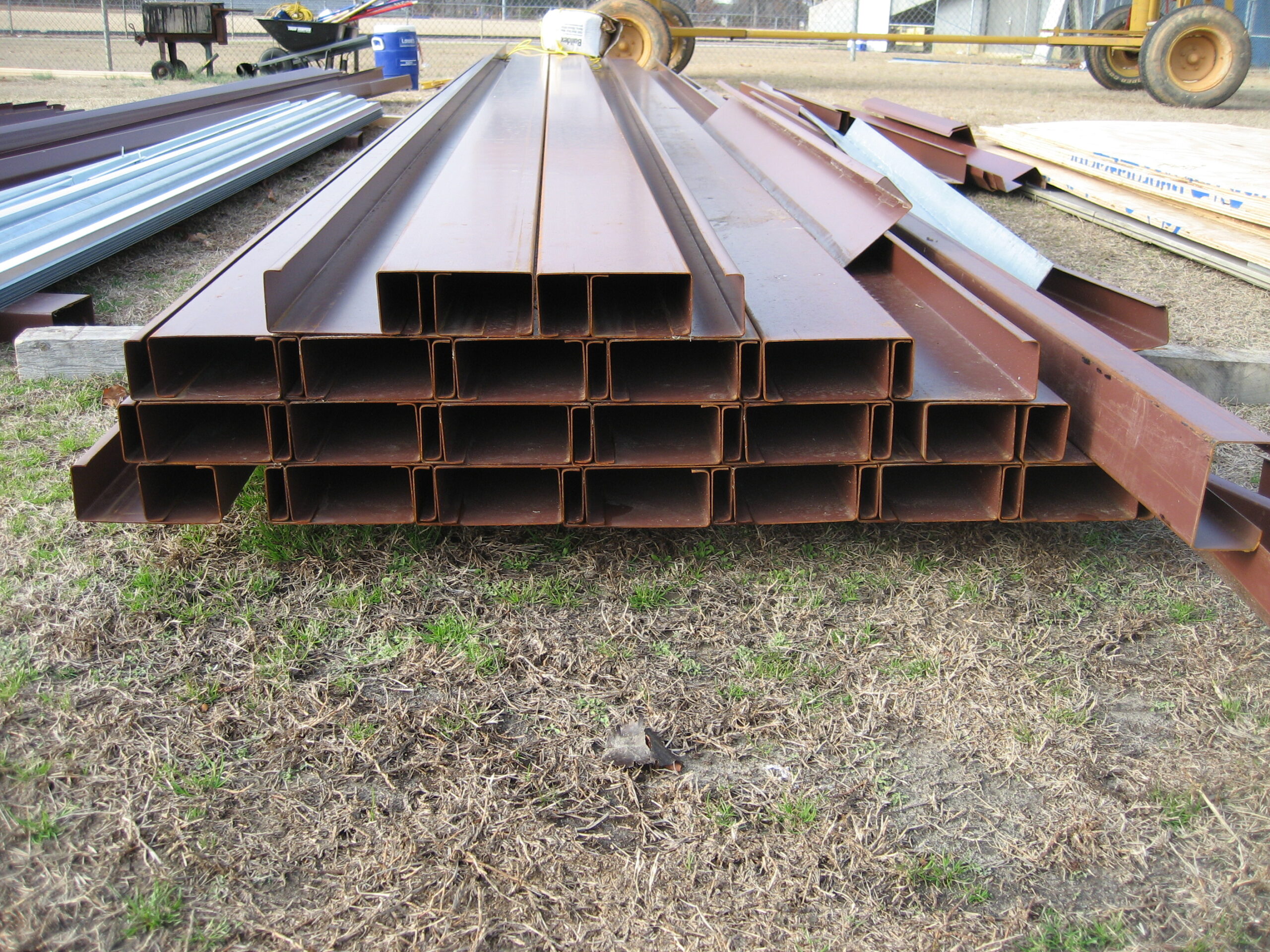

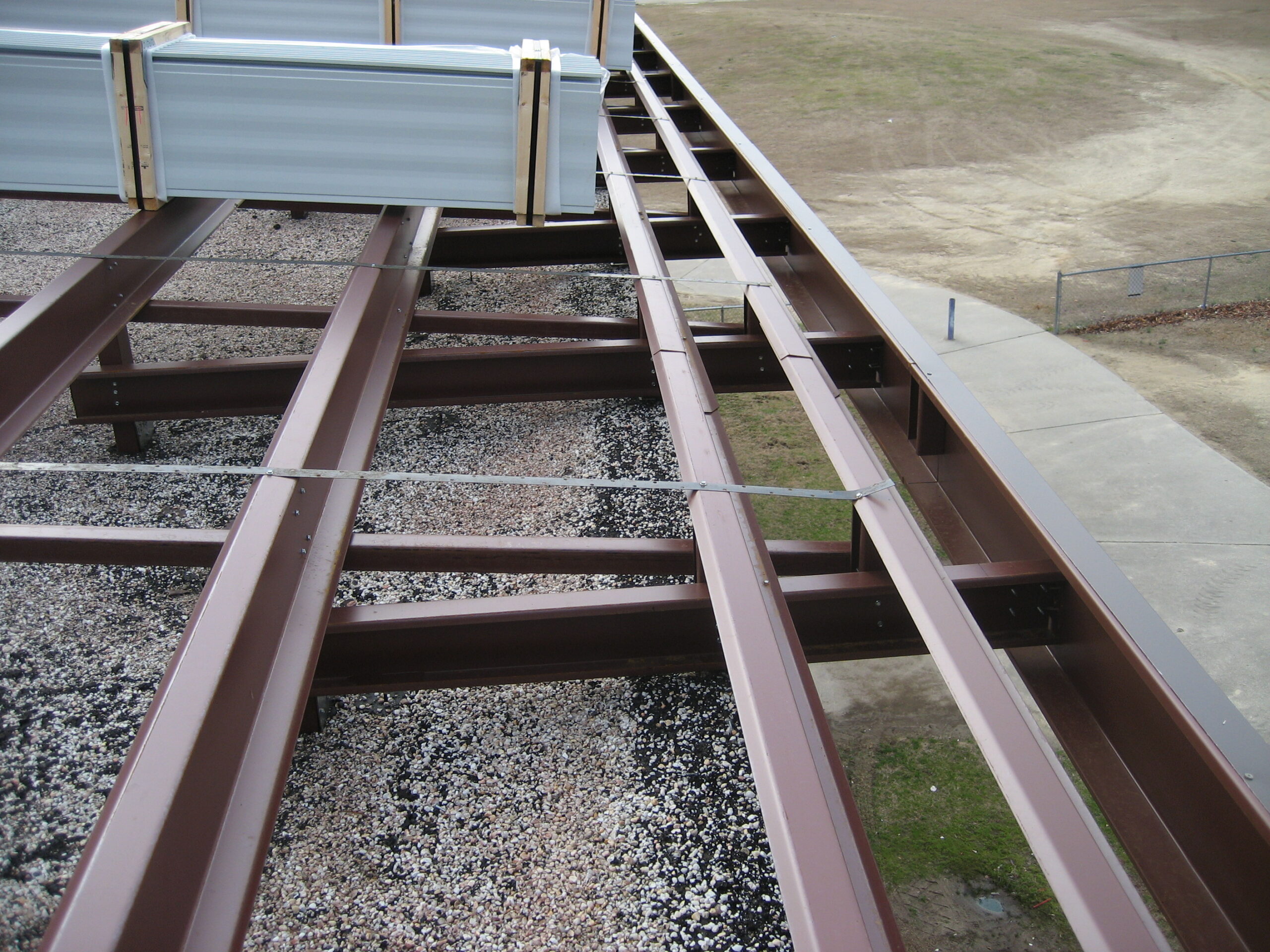

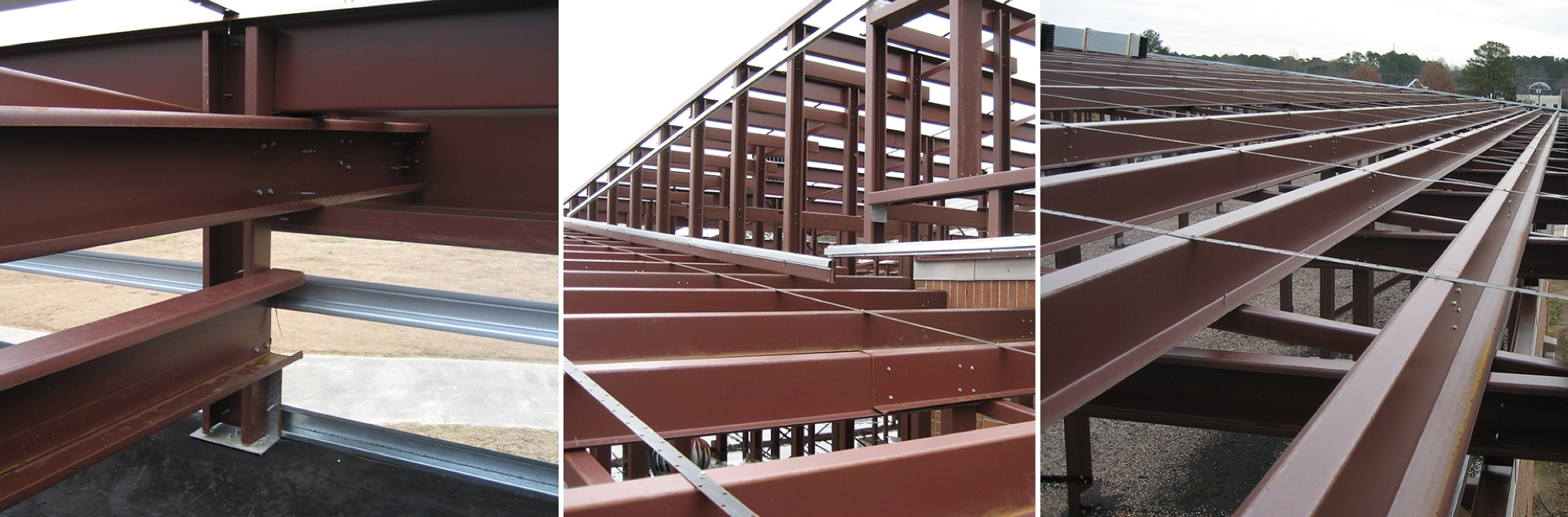

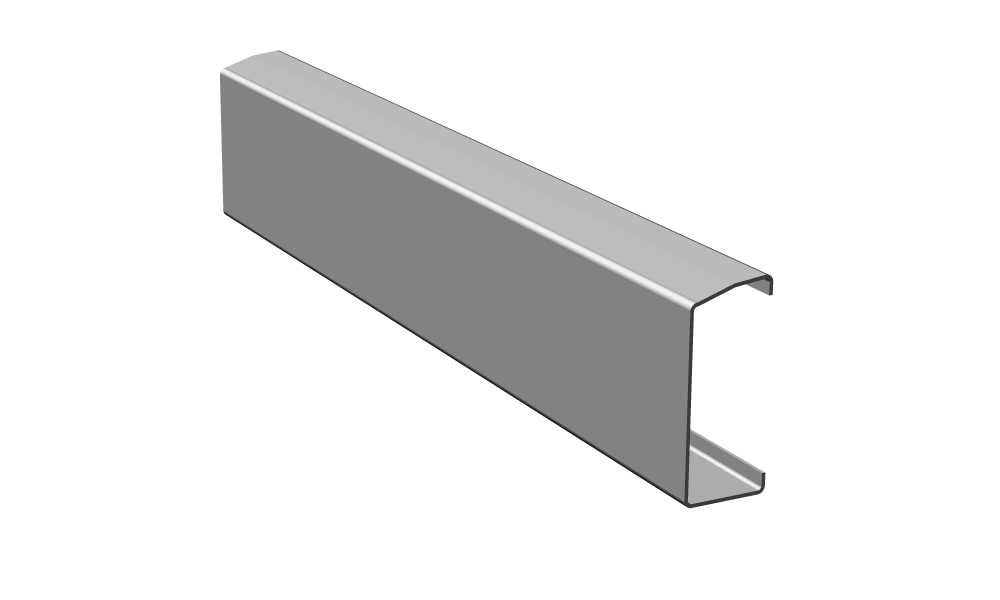

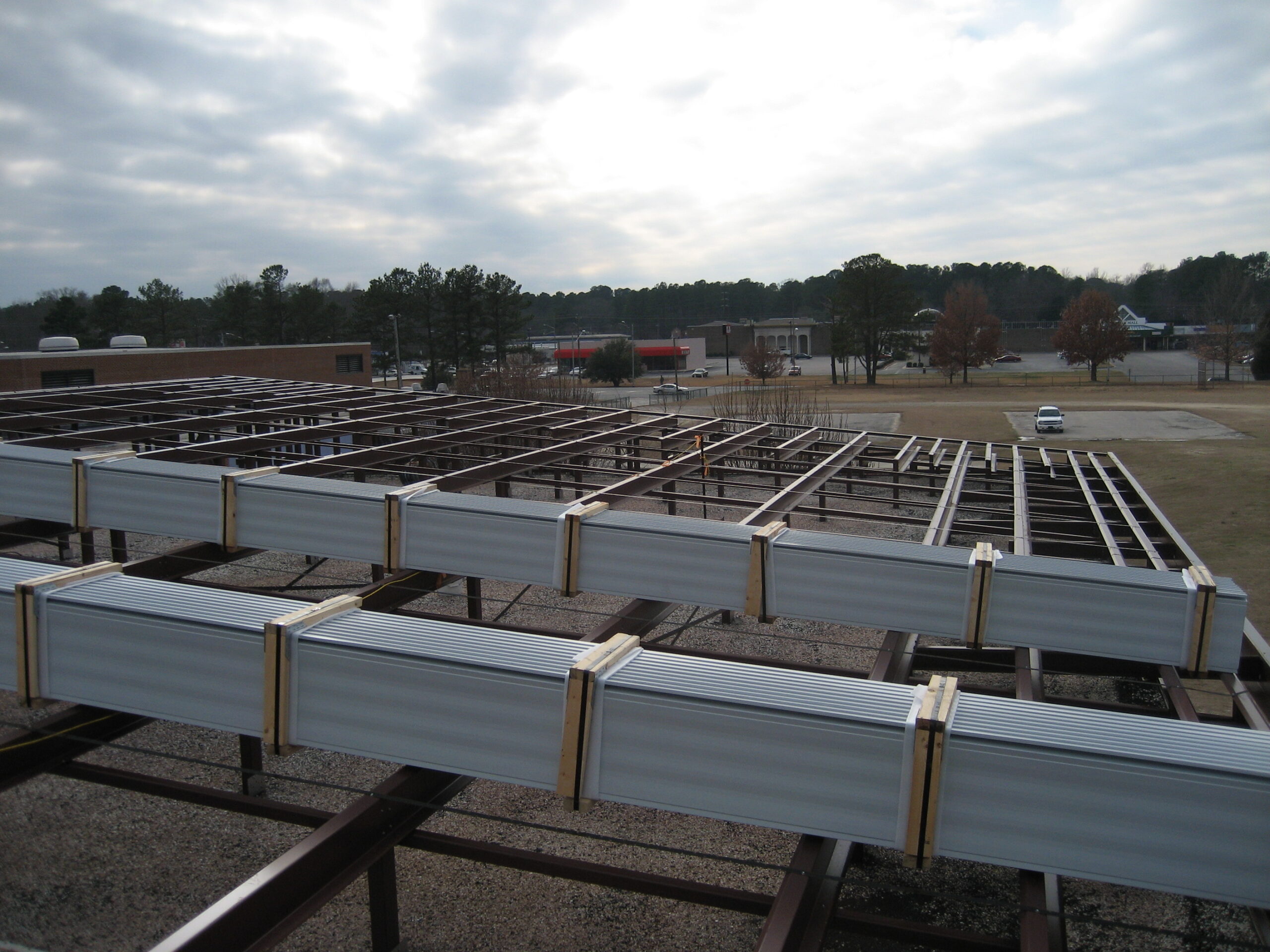

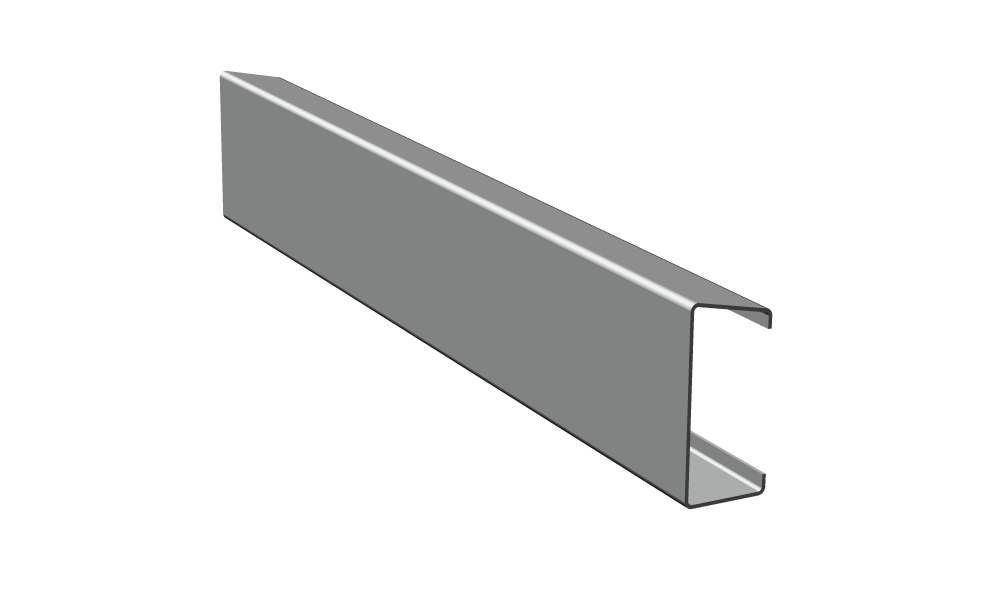

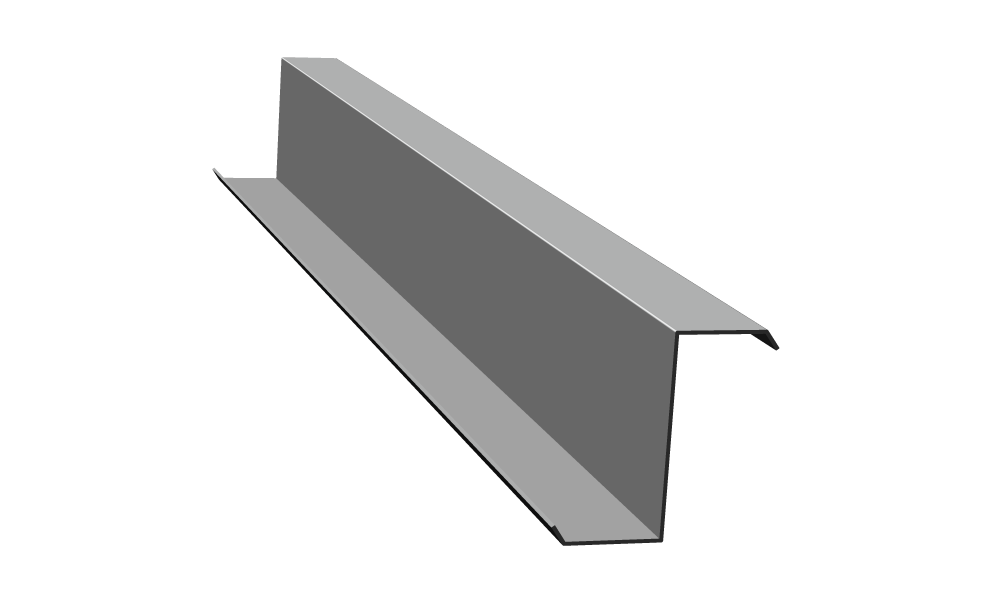

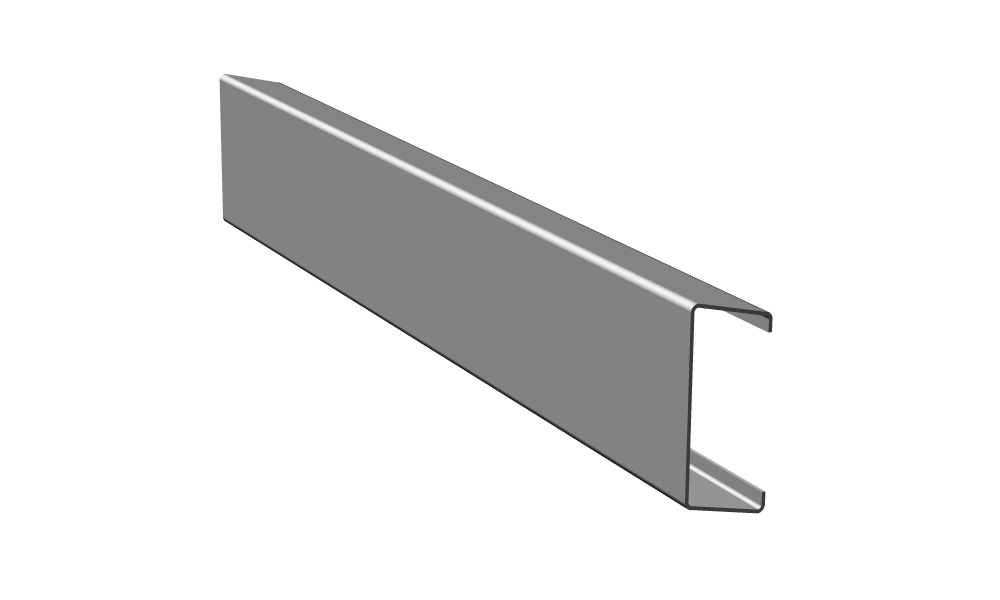

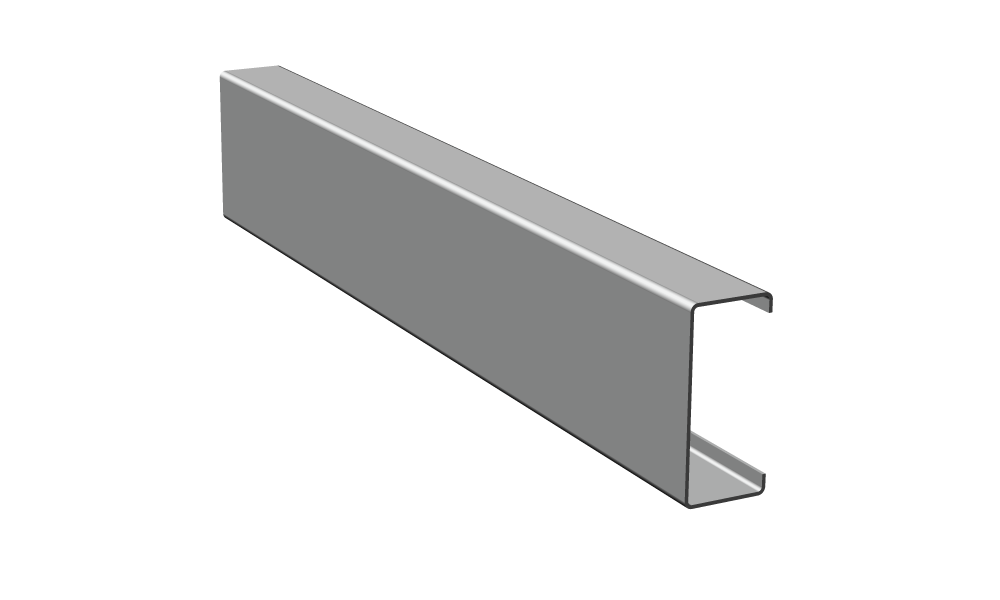

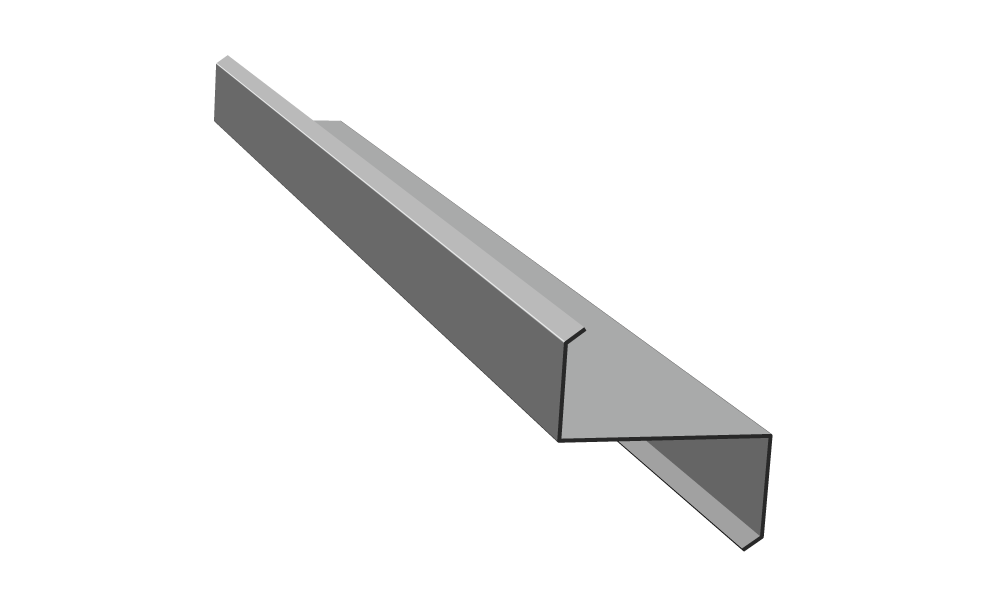

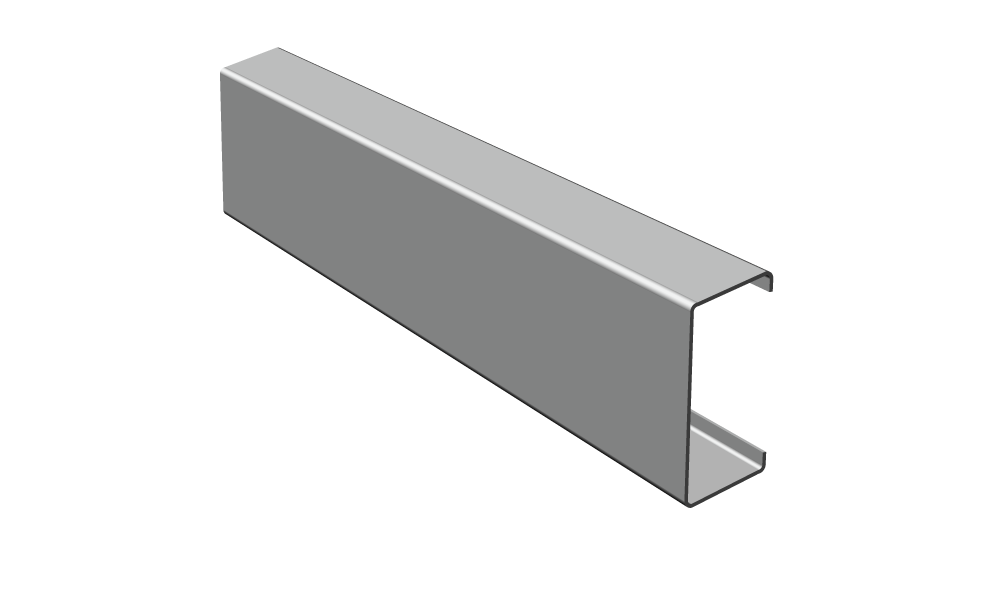

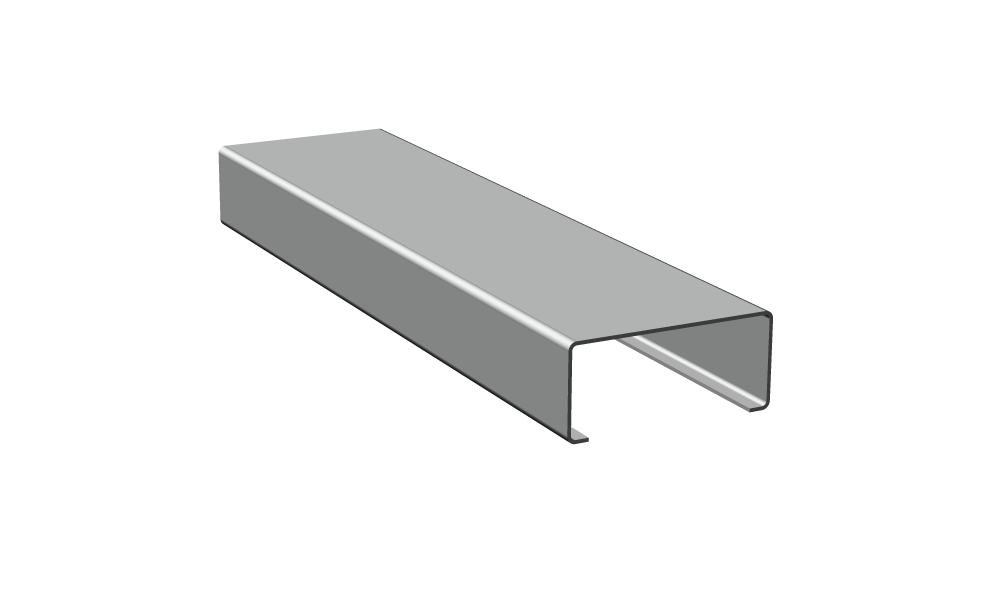

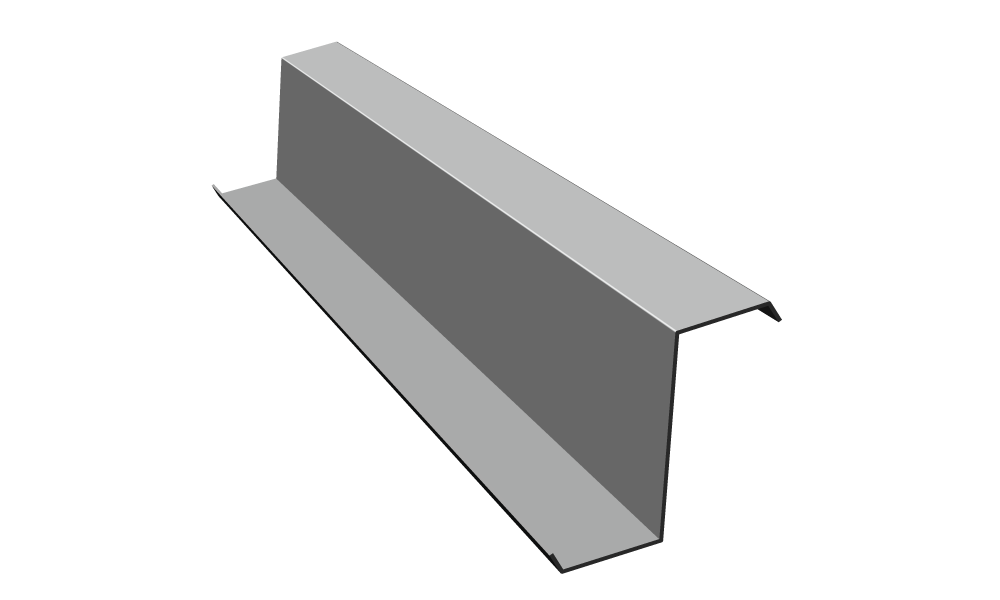

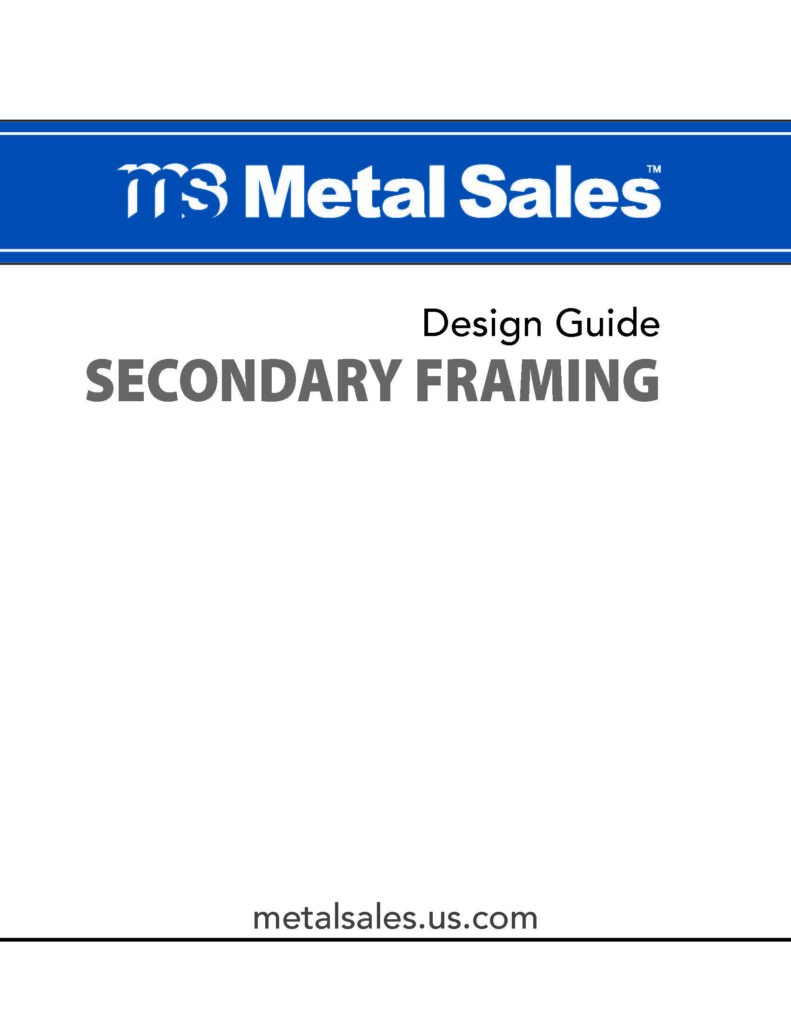

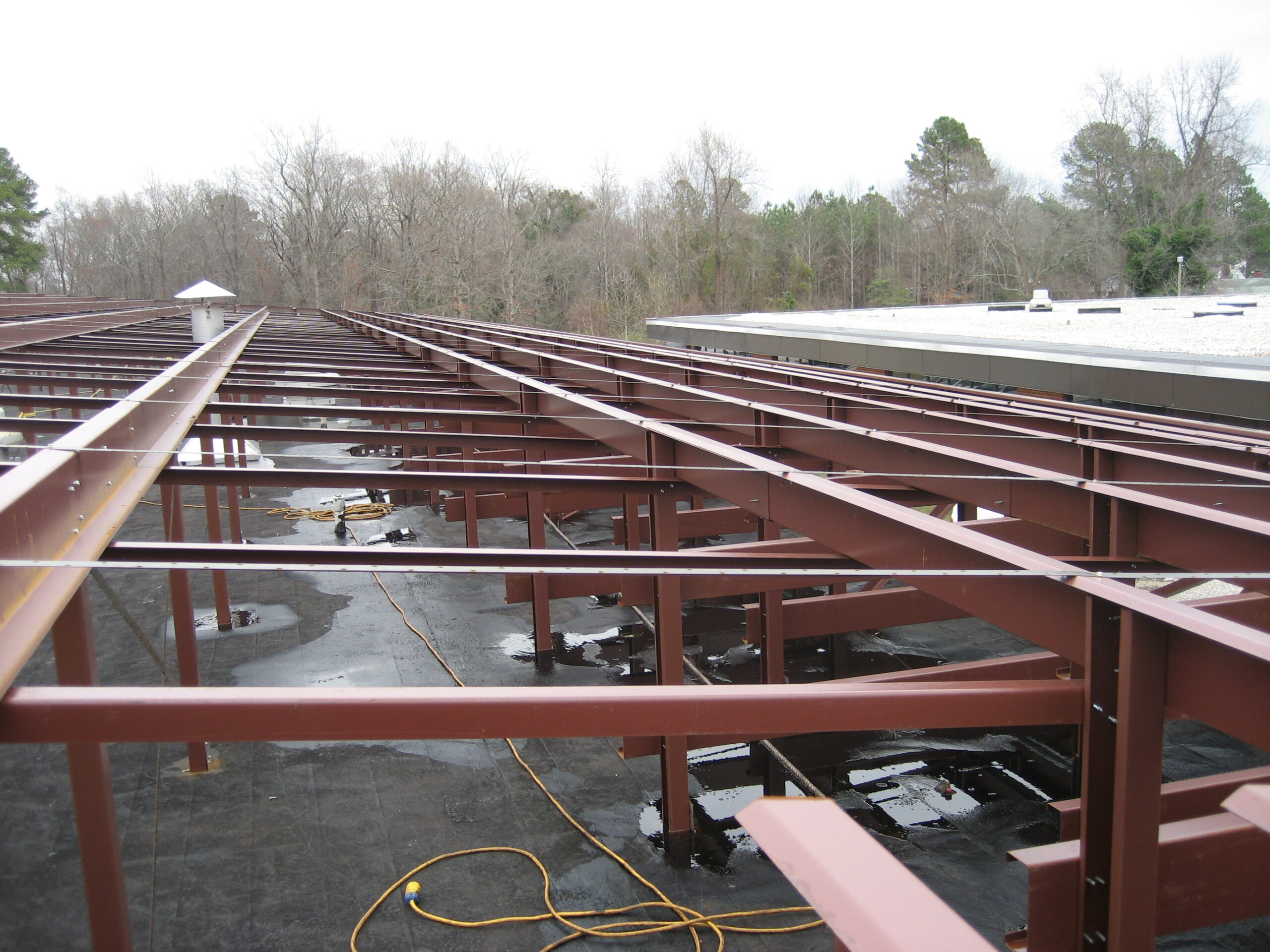

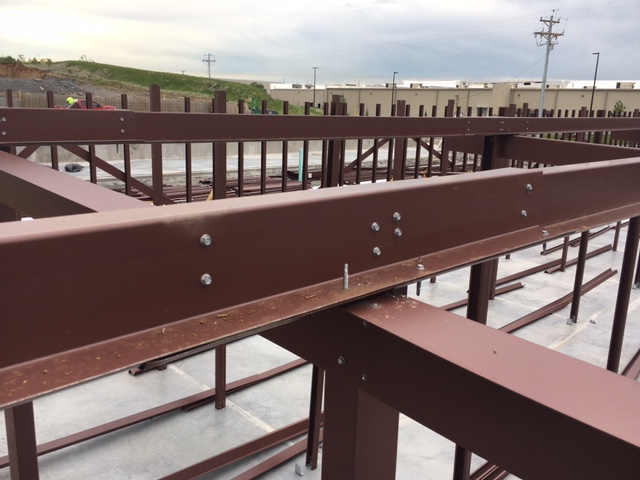

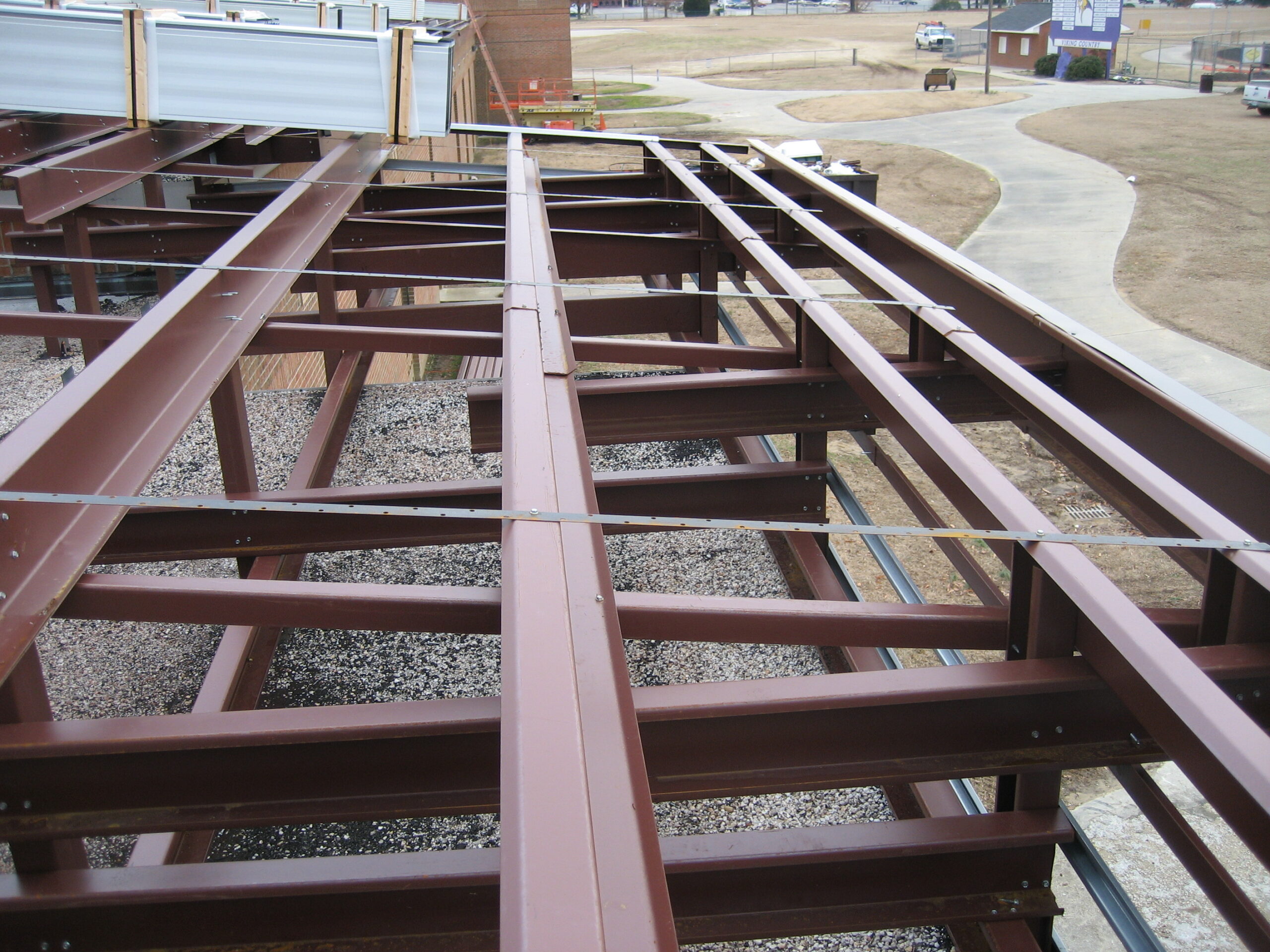

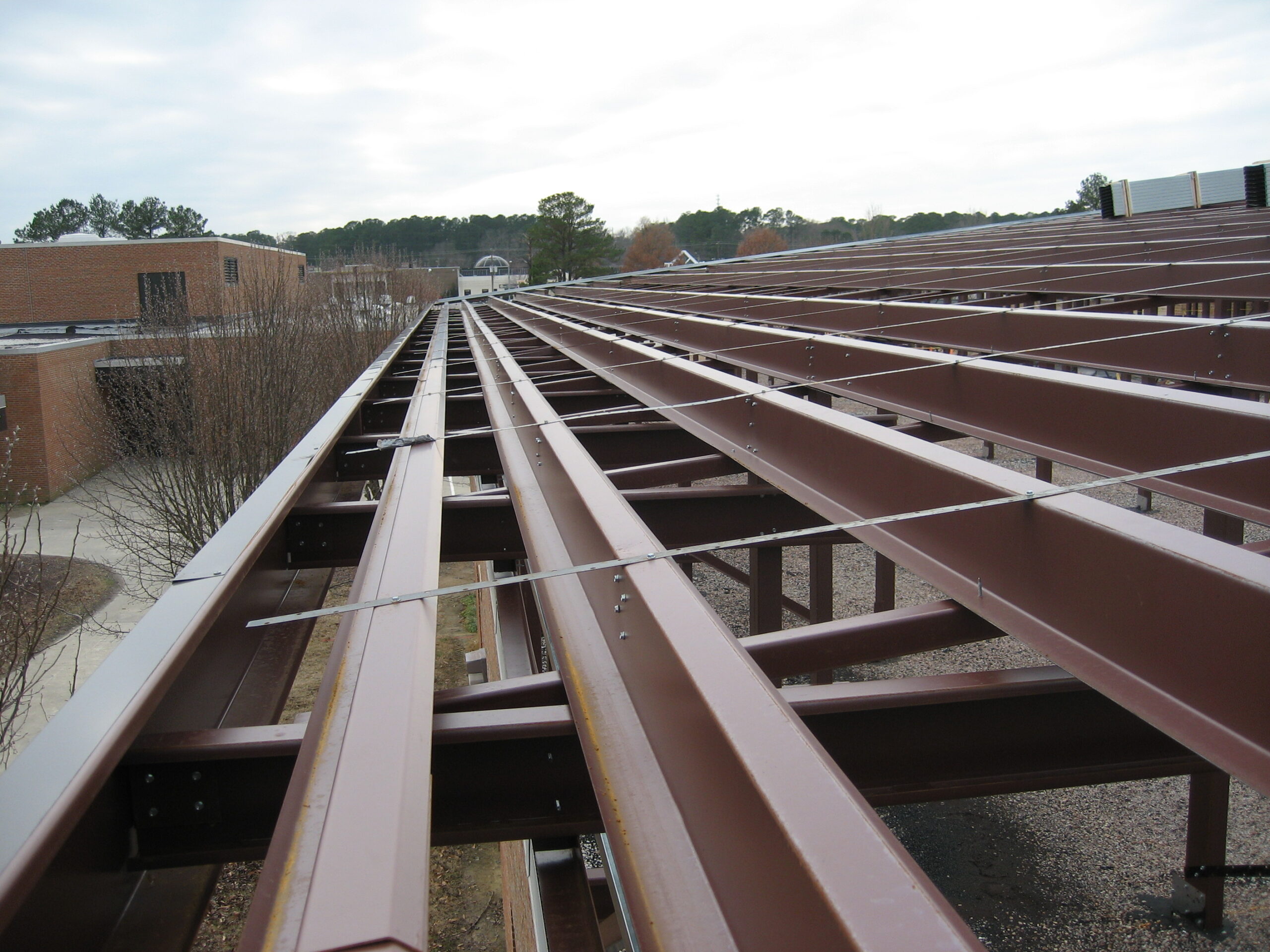

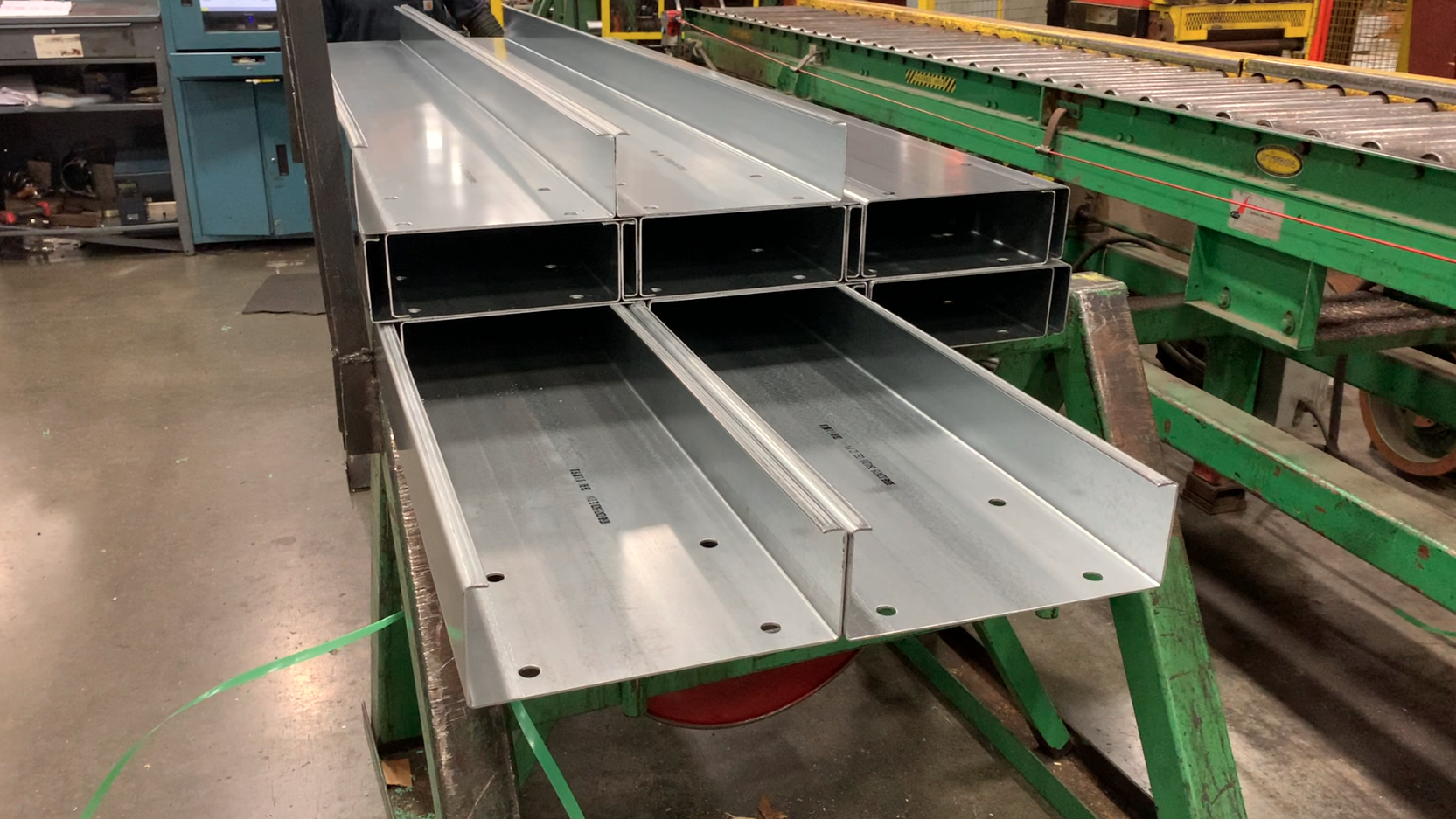

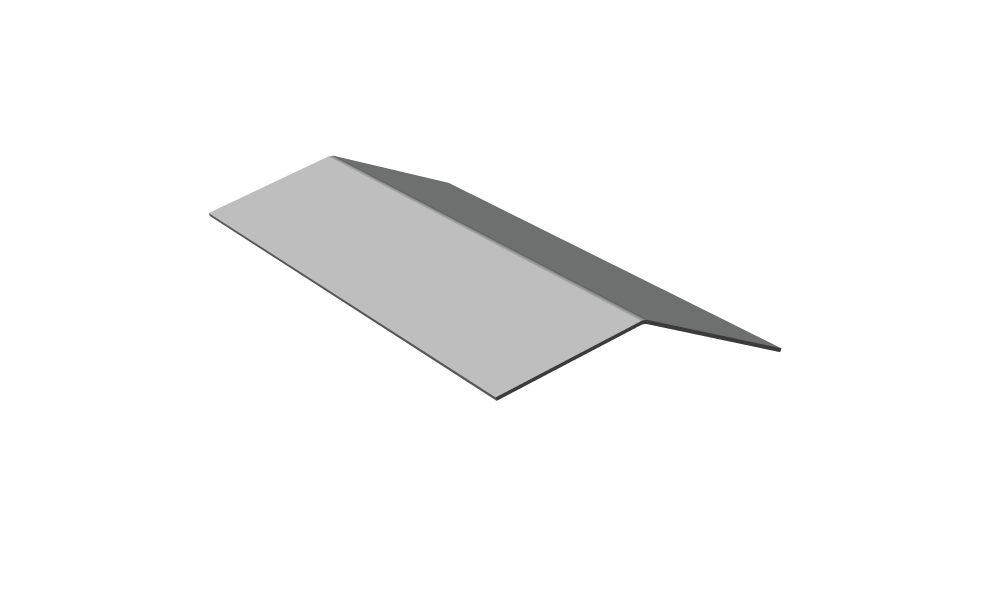

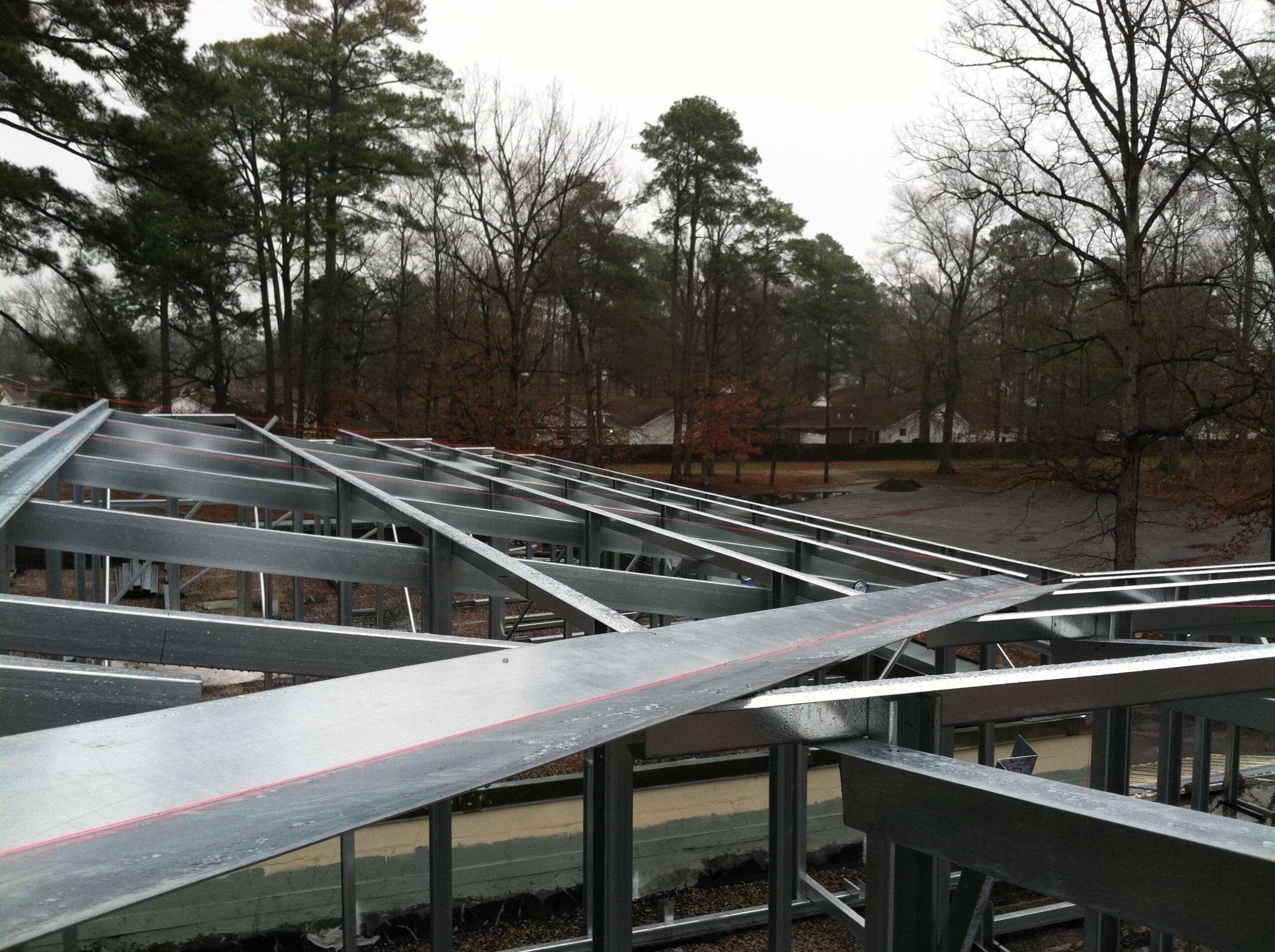

SECONDARY FRAMING Secondary framing is used on roofs to span the distance between the primary rigid framed rafters that support the metal roof panels. They can also include eave struts, channels, hat sections and angles to complete a building. These secondary structural steel framing components on the roof are known as “Cee” and “Zee” shaped purlins. Cold-formed steel “Cee” and “Zee” shaped girts are used on the walls to span the distance between the primary rigid framed columns that are used to support the metal wall panels. The girts and purlins are often coated with a rust-inhibiting red oxide primer or are unpainted galvanized steel members. Often, secondary framing members are punched with holes and slots in standard or custom patterns to allow connection bolts or bracing throughout the building. Secondary Framing Guide Cold-formed steel “Cee” and “Zee” shaped girts are used on the walls to span the distance between the primary rigid framed columns in order to support the metal wall panels. The girts and purlins are often coated with a rust-inhibiting primer (red oxide) or are unpainted galvanized steel members. Secondary framing members can be punched with holes and slots in standard or custom patterns to accept connection bolts or bracing. Secondary framing can also include eave struts, channels, hat sections and angles to complete a building. ZEE PURLIN Equal Leg Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide, Galvanized LEARN MORE ZEE PURLINLap Leg Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide, Galvanized LEARN MORE ZEE PURLINSloped Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide, Galvanized LEARN MORE ZEE WALL GIRT Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide, Galvanized LEARN MORE HIP PLATE Features: Length: 20′-0″ Gauges: 12, 14, 16 Leg Width: 7″, 9.5″, 10″ Finishes: Red Oxide, Galvanized LEARN MORE VALLEY PLATE Features: Length: 20′-0″ Gauges: 12, 14, 16 Web Height: 7″, 9.5″, 10″ Finishes: Red Oxide, Galvanized LEARN MORE CEE PURLIN Panel Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide , Galvanized LEARN MORE CEE WALL GIRT Panel Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide , Galvanized LEARN MORE CHANNEL Panel Features: Gauges: 12, 14, 16 Web Height: 4.125″, 6.125″, 8.125″, 9.125″, 10.125″, 12.125″ Flange Width: 2″, 2.5″, 3″, 3.5″, 4″ Finishes: Red Oxide , Galvanized LEARN MORE EAVE STRUT – LowSingle Slope Panel Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 3.5″, 4″, 5″ Finishes: Red Oxide , Galvanized LEARN MORE EAVE STRUT – HighSingle Slope Panel Features: Gauges: 12, 14, 16 Web Height: 4″, 6″, 8″, 9″, 10″, 12″ Flange Width: 3.5″, 4″, 5″ Finishes: Red Oxide , Galvanized LEARN MORE EAVE STRUT – Universal4:12 & 1:12 Slope Panel Features: Gauges: 12, 14 Web Height: 8″ Flange Width: 3.5″, 5″ Finishes: Red Oxide , Galvanized LEARN MORE EAVE STRUT – LowDouble Slope Panel Features: Gauges: 12, 14, 16 Web Height: 6″, 8″, 9″, 10″, 12″ Flange Width: 3.5″, 4″, 5″ Finishes: Red Oxide , Galvanized LEARN MORE EAVE STRUT – HighDouble Slope Panel Features: Gauges: 12, 14, 16 Web Height: 6″, 8″, 9″, 10″, 12″ Flange Width: 3.5″, 4″, 5″ Finishes: Red Oxide , Galvanized LEARN MORE SECONDARY FRAMING GUIDE Click to download the pdf. DOWNLOAD
